Direct Answer
Telecommunications PCB assembly should be quoted around deployment environment, EMC-sensitive cabling and grounding, controlled impedance, RF connector transitions, shield and thermal design, hidden-joint inspection, BOM control, and product-level test evidence instead of generic SMT placement capacity.
Engineering Context
Telecommunications PCB Assembly should answer a specific sourcing or manufacturing decision, not a generic service claim.
Current taxonomy dimensions: industry: telecommunications, assemblyType: smt, pcbCategory: rf-microwave, material: rogers-4350b.
Telecommunications PCB Assembly is useful only when it changes the engineering or sourcing review. The page should make clear what the buyer must decide before quote, what the manufacturer can verify from the supplied package, and which assumptions would create rework if they are discovered after fabrication or assembly starts.
The key decision is: Plan telecommunications PCBA with environmental, EMC, impedance, thermal, inspection, and product-level test handoff visible. A good RFQ connects that decision to concrete constraints, required handoff files, inspection scope, sourcing boundaries, and test evidence. If a requirement changes stackup, BOM control, fixture access, inspection depth, or shipment documentation, it belongs in the quote package rather than in a late email thread.
The relevant dimensions are industry: telecommunications, assemblyType: smt, pcbCategory: rf-microwave, material: rogers-4350b. Each dimension should affect the quote inputs, manufacturing risks, or quality checks. A material, platform, industry, or capability label is not enough by itself unless it changes the actual review path.
Source-Backed Review Notes
- ETSI 300 019 frames environmental condition and environmental test context for telecommunications equipment; use it to ask for deployment environment, enclosure, airflow, and verification assumptions, not to claim compliance.
- ETSI EN 300 386 frames EMC requirements context for telecommunication network equipment; use it to justify EMC-aware RFQ inputs around grounding, shielding, cabling, connector transitions, and test evidence.
- IEC 62368-1 frames ICT equipment product-safety context; use it only to separate product-level safeguard evidence from PCBA assembly scope.
- IPC J-STD-001 and IPC-A-610 frame soldered-assembly and acceptability handoff; use them to scope inspection without copying paid acceptance criteria.
- IPC-9716 and IPC-7095 support AOI and hidden-joint/BGA inspection boundaries where telecom assemblies include shield cans, BGAs, RF modules, or bottom-terminated packages.
- Rogers and TI sources support low-loss laminate, stackup, impedance, return-path, EMI, and connector-transition review before release.
Manufacturing Constraints
- EMC, cabling, grounding, shield, or enclosure assumptions discovered only after product-level testing
- fabrication stackup drift changing impedance or insertion-loss assumptions after assembly has already been quoted
- connector launch, antenna keepout, clock, RF switch, or return-path details missing from assembly review
- thermal pads, shield cans, RF modules, or BGAs assembled without AOI, X-ray, rework, or fixture access planning
- unapproved laminate, RF connector, oscillator, power module, PHY, optical module, or shield substitutions changing RF, EMC, thermal, or firmware-test assumptions
- telecom network equipment may combine RF paths, high-speed digital interfaces, cable entry points, shield cans, optics, power stages, and enclosure airflow in one assembly review
- environmental, EMC, and product-safety evidence remains product-level, but the PCBA RFQ must expose the deployment environment, grounding, cabling, enclosure, and test assumptions that affect assembly decisions
- controlled impedance, low-loss laminate availability, stackup repeatability, connector launches, and return-path continuity should be reviewed before pilot release
- thermal load from radios, processors, power amplifiers, PHYs, PoE or power-conversion stages, and network interfaces can change solder-joint inspection, heat-sink, and functional-test planning
Quote Inputs
- Gerber or ODB++ plus drill files, stackup, impedance targets, material callouts, and any coupon or measurement expectations
- BOM, centroid, assembly drawing, polarity notes, shield-can drawings, connector orientation, cable or enclosure constraints, and thermal-interface notes
- firmware, programming, fixture access, link-test procedure, power-rail limits, current-draw expectations, and any RF path or optical-link checks required for acceptance
- deployment environment, airflow, grounding, cabling, enclosure, EMC, safety, and environmental assumptions that affect assembly choices without turning the PCBA quote into a compliance claim
- Freeze RF connectors, shield cans, oscillators, clocks, power modules, PHYs, optical modules, thermal-interface parts, low-loss laminate, and approved alternates before pilot release.

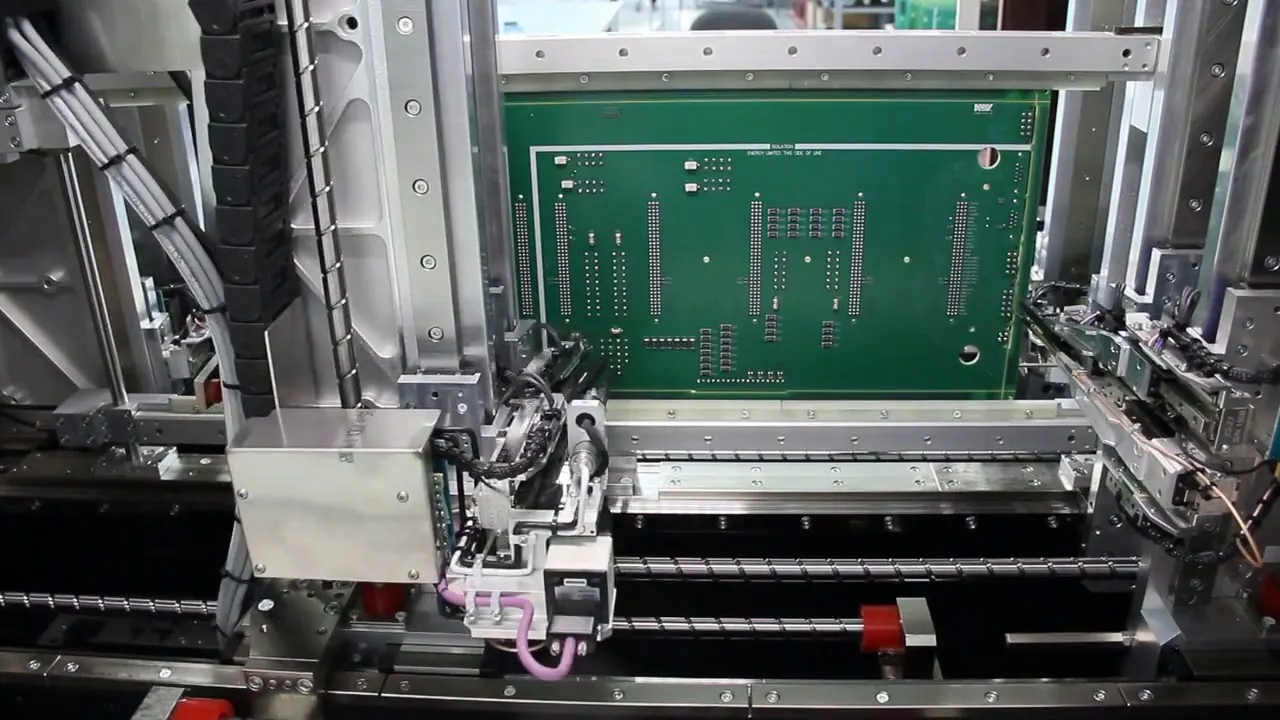

Inspection And Build Plan
- AOI scope for visible SMT placement, polarity, fine-pitch parts, shield-can alignment, connector orientation, and solder-process control
- X-ray review where BGAs, bottom-terminated packages, RF modules, hidden thermal pads, or shielded joints make optical inspection incomplete
- soldered-assembly and acceptability scope tied to the customer drawing, required class, and inspection evidence instead of an implied quality claim
- impedance coupon, stackup confirmation, or measurement evidence when RF, SerDes, Ethernet, backplane, or connector transitions depend on controlled geometry
- functional test for power rails, current draw, boot, firmware or programming state, Ethernet or optical link, RF path assumption, alarms, and thermal behavior where applicable
Example Review
A 6-layer telecom gateway with RF connectors, shield cans, DDR memory, Ethernet PHYs, an optical module, and a warm power stage should be quoted with stackup, dielectric assumptions, impedance targets, connector-launch notes, shield placement rules, X-ray needs, thermal notes, firmware state, and a test plan that proves boot, link, current draw, and any RF path assumptions. Without those inputs, the assembly price misses the real risk and cannot separate PCBA readiness from product-level EMC, safety, or environmental evidence.
Pre-Quote Review
Before requesting Telecommunications PCB Assembly, compare the design against adjacent options in the same cluster. If another material, platform, finish, or assembly route would use the same quote inputs and risk controls, the project may not need a separate sourcing path.
Source-backed notes should be used as engineering boundaries, not as copied datasheet text, standards excerpts, legal advice, or unsupported certification claims. The RFQ should describe the real product, operating environment, files, and acceptance checks that the manufacturer can verify.
The final quote package should make responsibility clear: design intent and acceptance criteria come from the buyer; DFM, fabrication, assembly, inspection, sourcing feedback, and delivery feasibility come from the manufacturing review.
Tradeoffs
- Low-loss material improves RF or high-speed margin but adds sourcing, stackup, coupon, and approved-alternate control requirements.
- Telecom standards should frame environment, EMC, and safety questions, but compliance evidence belongs to the finished product and test plan.
- Generic SMT inspection is not enough when shield cans, BGAs, thermal pads, RF modules, and connector launches drive failure risk.
- A telecom industry page earns publication only when it changes operating constraints, sourcing controls, inspection depth, and functional-test evidence beyond a generic PCBA page.
